Bussmann微型保险丝过流SR-5-3.15A保险丝-商一网

价格:未填
品牌:bussmann
发货:3天内

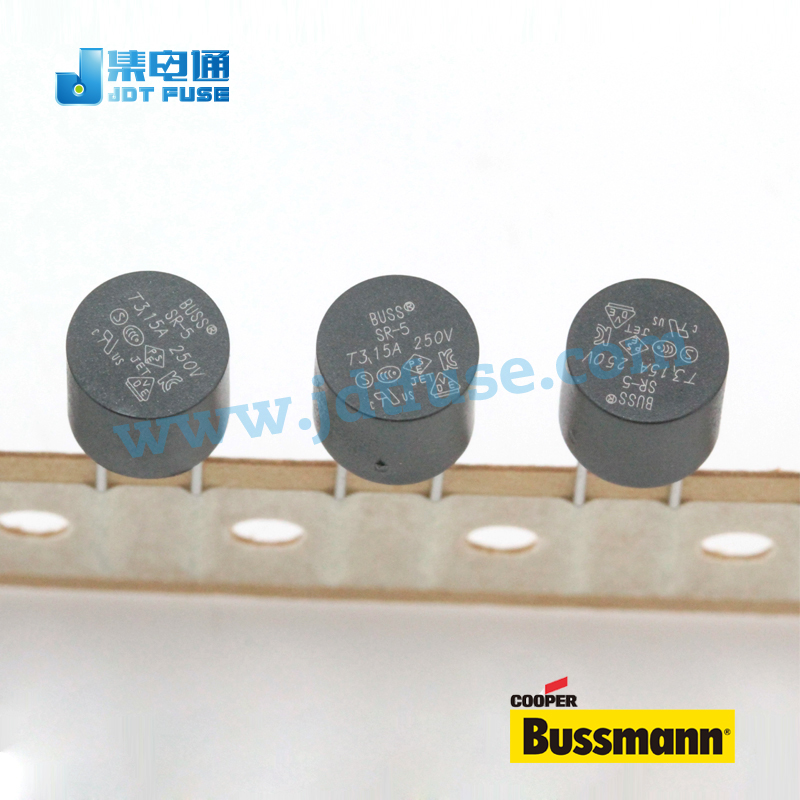

Bussmann微型保险丝过流SR-5-3.15A保险丝

免费提供样品

Specifications

Part Number	Voltage Rating AC	Interrupting Rating (amps) @ Rated Voltage	Typical DC Cold Resistance (W)	Typical Melting** I2t (@1mS)	Voltage Drop mV @ 20°C Rated Current	Agency Information
Part Number	Voltage Rating AC	Interrupting Rating (amps) @ Rated Voltage	Typical DC Cold Resistance (W)	Typical Melting** I2t (@1mS)	Voltage Drop mV @ 20°C Rated Current	VDE	SEMKO	cURus	CCC	KC-Mark	PSE
SR-5-100mA	250	35	2.37	0.015155	288.5	x	x	x	x	x
SR-5-125mA	250	35	1.6	0.026783	238	x	x	x	x	x
SR-5-160mA	250	35	1.02	0.039097	196.5	x	x	x	x	x
SR-5-200mA	250	35	0.94	0.168832	215.5	x	x	x	x	x
SR-5-250mA	250	35	0.66	0.24778	185	x	x	x	x	x
SR-5-315mA	250	35	0.43	0.2772	152	x	x	x	x	x
SR-5-400mA	250	35	0.285	0.771618	127	x	x	x	x	x
SR-5-500mA	250	35	0.242	2	143.5	x	x	x	x	x
SR-5-630mA	250	35	0.154	3.5	113	x	x	x	x	x
SR-5-800mA	250	35	0.112	6.5	104.5	x	x	x	x	x
SR-5-1A	250	35	0.085	7.5	100	x	x	x	x	x	x
SR-5-1.25A	250	35	0.061	13	91	x	x	x	x	x	x
SR-5-1.6A	250	35	0.043	24	102	x	x	x	x	x	x
SR-5-2A	250	35	0.031	30	74.5	x	x	x	x	x	x
SR-5-2.5A	250	35	0.024	45	72.5	x	x	x	x	x	x
SR-5-3.15A	250	35	0.018	57	70.25	x	x	x	x	x	x
SR-5-4A	250	40	0.012	80	62	x	x	x	x	x	x
*SR-5-5A	250	50	0.010	95.4	57.5	x	x	x	CQC	x	x
*SR-5-6.3A	250	63	0.008	200	60.85	x	x	x	CQC	x	x
